Universal Bushing-Holder (UBH)

SKU: HD008-1-P-UBH1

What It Does:

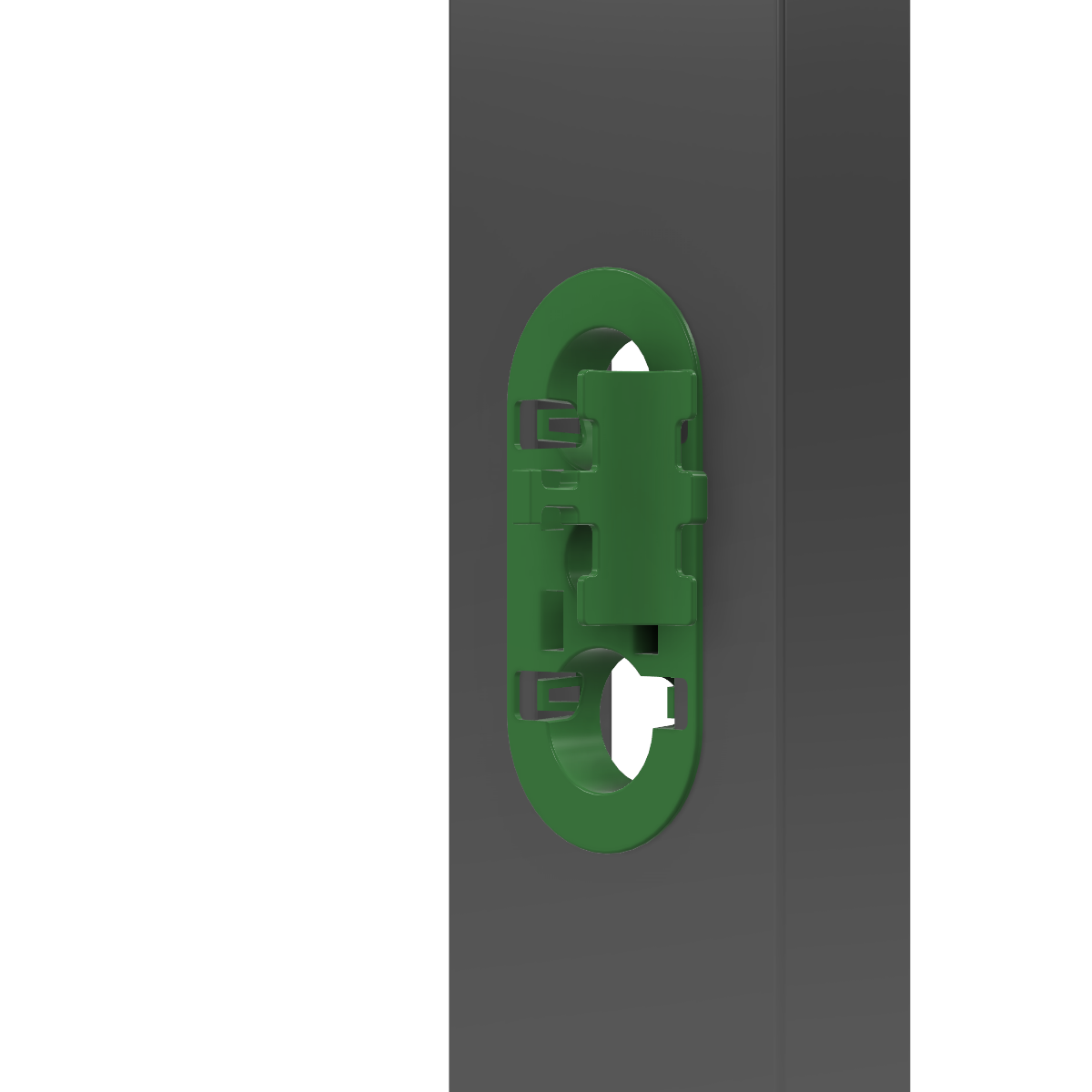

The Universal Bushing-Holder combines abrasion protection with built-in support and attachment for pipe and cable. It fits common oval and rectangle service holes in metal framing and gives you multiple points to route, position and secure your rough-in—horizontally or vertically.

Snap it into the framing, route your pipe or cable, then secure it with a BH Clamp or cable tie. Add a Pipe Guide or Cable Divider when you need more control.

Key Features:

• Works for electrical cables and plumbing pipes
• Fits oval and rectangle shaped holes, 11–25 ga steel
• Snaps in, no tools or screws required
• 3/8" offset base keeps cables and pipes clear of the mounting surface
• Allows up to 10 cables in a single oval service hole
• Eliminates the need for protection plates at 3-1/2” or 3-5/8” studs
• Provides for pipe or cable attachment at every bushing
• Snip flanges to create 2 separate Bushing-Holders
• Fits industry-standard service holes from 1-1/2" x 3" to 1-1/2" x 4", including Clark Dietrich, FRAMECAD, Howick, Scottsdale, and Arkitech framing members.
• Fits most common sized service holes.

Specifications:

• SKU: HD008-1-P-UBH1
• Fits: Oval, rectangular holes, 11–25 ga steel, ovals 1-1/2" x 3"–4"
• Cable Compatibility: NM, MC, AC, and low-voltage cable
• Pipe Compatibility: ½” and ¾” Copper, PEX, PVC, CPVC, and poly pipe
• Works With: BH Clamp, Pipe Guide, Cable Divider
• Dimensions: 4.60" L x 2.21" W x 0.85" H
• Weight: 0.485 oz
• Material: PP
• Meets NEC 300.6(B): NM Cables through metal framing members.

Installation:

1. SNAP IT
   Align the UBH with the service hole from the backside of the framing. Pull it through from the front until it snaps securely into place.

2. ROUTE IT
   Run cable or pipe through the UBH openings, or position it parallel to the framing.

3. SECURE IT
   Use a BH Clamp or cable tie to secure pipe or cable to the UBH.

4. FINE-TUNE IT
   Add a Pipe Guide or Cable Divider when you need additional stability or organization.

   Note: The UBH can also be separated at the center flanges to create two individual Bushing-Holders.
