Bushing-Holder Clamp (BH Clamp)

SKU: HD008-2-P-CLMP

What It Does:

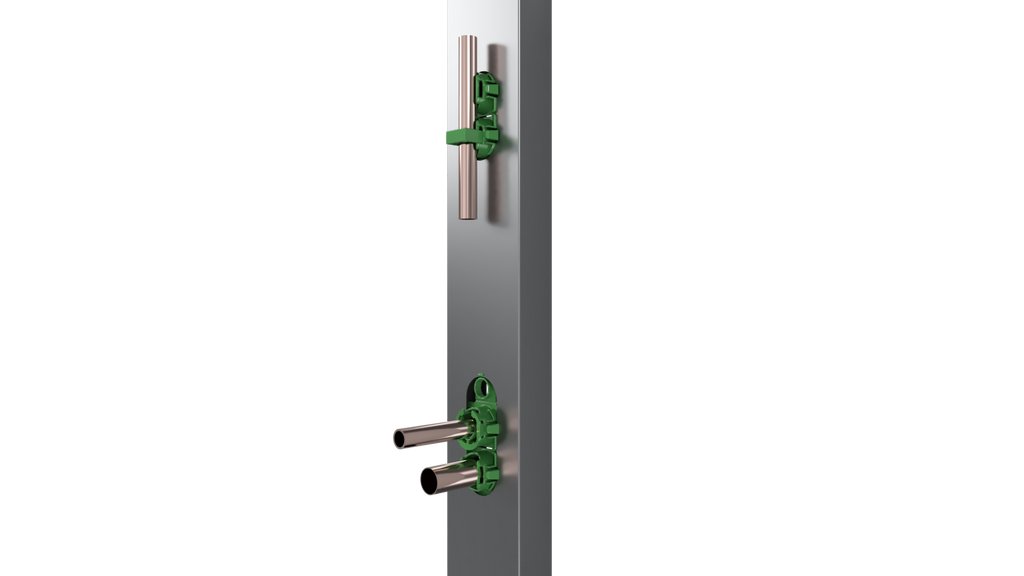

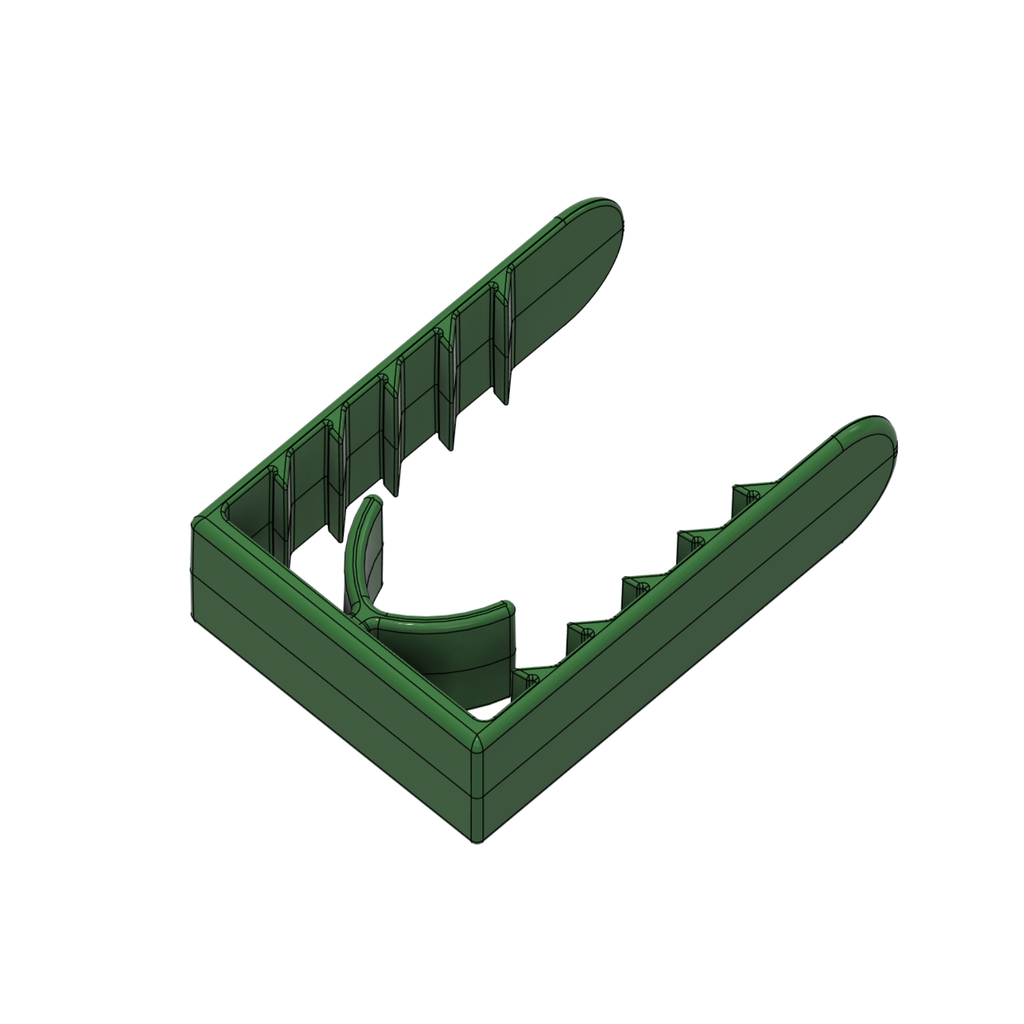

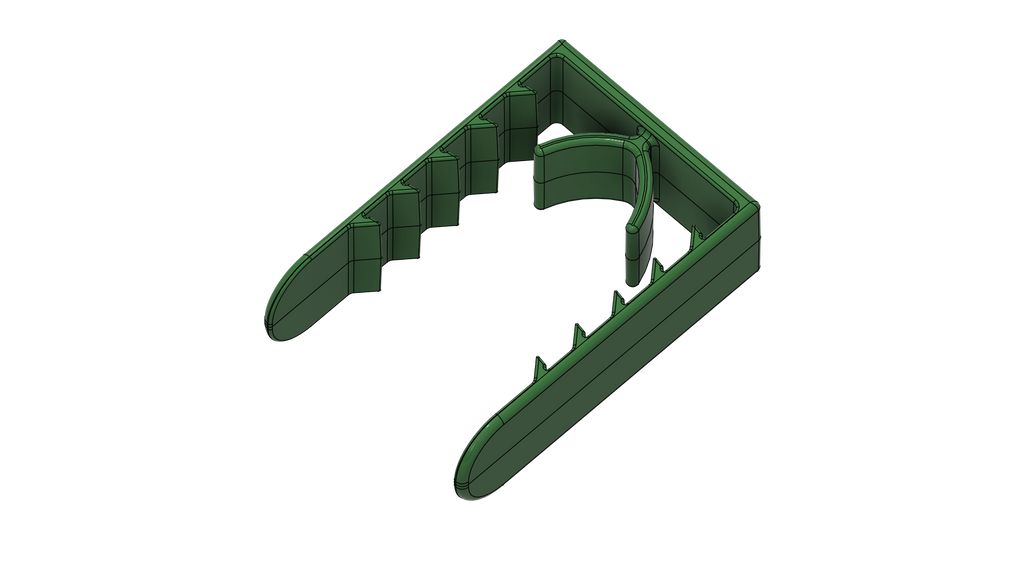

A C-shaped clamp that snaps into a Bushing-Holder to secure cables and pipes in place. Allows you to run pipes and cables vertically from either the Universal Bushing-Holder or the Round Bushing-Holder. Especially helpful when changing direction of the cable as it exits the bushing opening.

Key Features:

• Secures 1/2"–3/4" pipe and all electrical cable types
• Enables you run cable or pipe vertically or easily change direction of cable as it exits the bushing
• Snaps in by hand, no tools required
• Works with both the Universal Bushing-Holder and Round Bushing-Holder

Specifications:

• SKU: HD008-2-P-CLMP
• Cable Compatibility: NM, MC, AC, and low-voltage cable
• Pipe Compatibility: ½” and ¾” Copper, PEX, PVC, CPVC, and poly pipe
• Works With: Universal Bushing-Holder, Round Bushing Holder
• Dimensions: 0.96" L x 0.42" W x 1.45" H
• Weight: 0.06 oz
• Material: HDPE, PP

Installation:

1. ROUTE IT
   Route pipe or cable parallel to the framing member, saddled on the raised profile side of the Bushing-Holder.

2. POSITION IT
   Position the BH Clamp over a pipe or cable and insert the legs between the side bars and the body of the Bushing-Holder.

3. SNAP IT
   With one hand pressing against the back of the installed Bushing-Holder, firmly press the Clamp in place until pipe or cable is secured.
